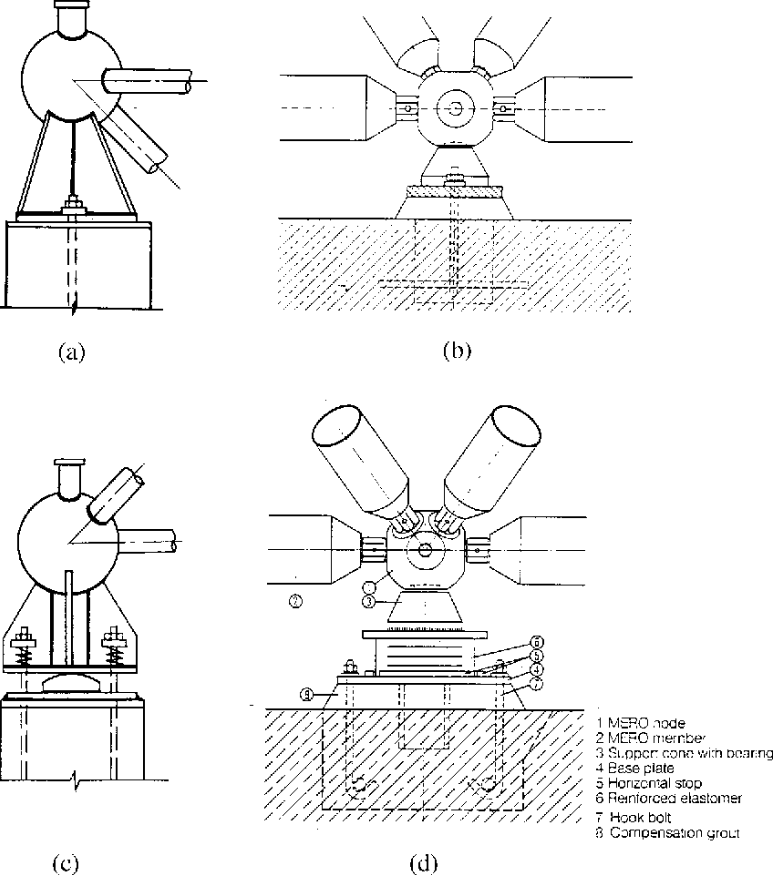

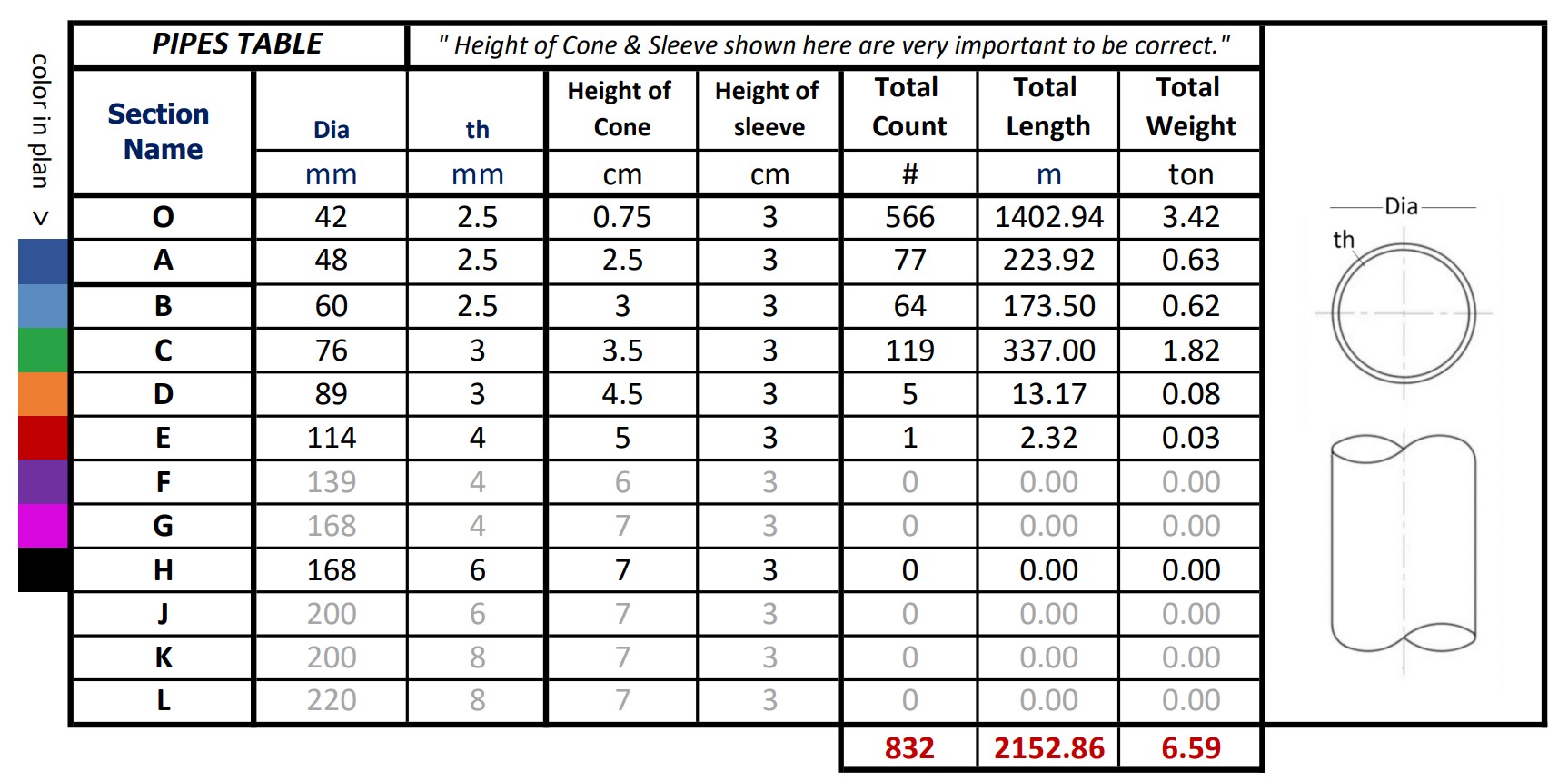

Pipe Table
This table represents a list of pipes used in the project and assigns each letter to each pipe dimension.

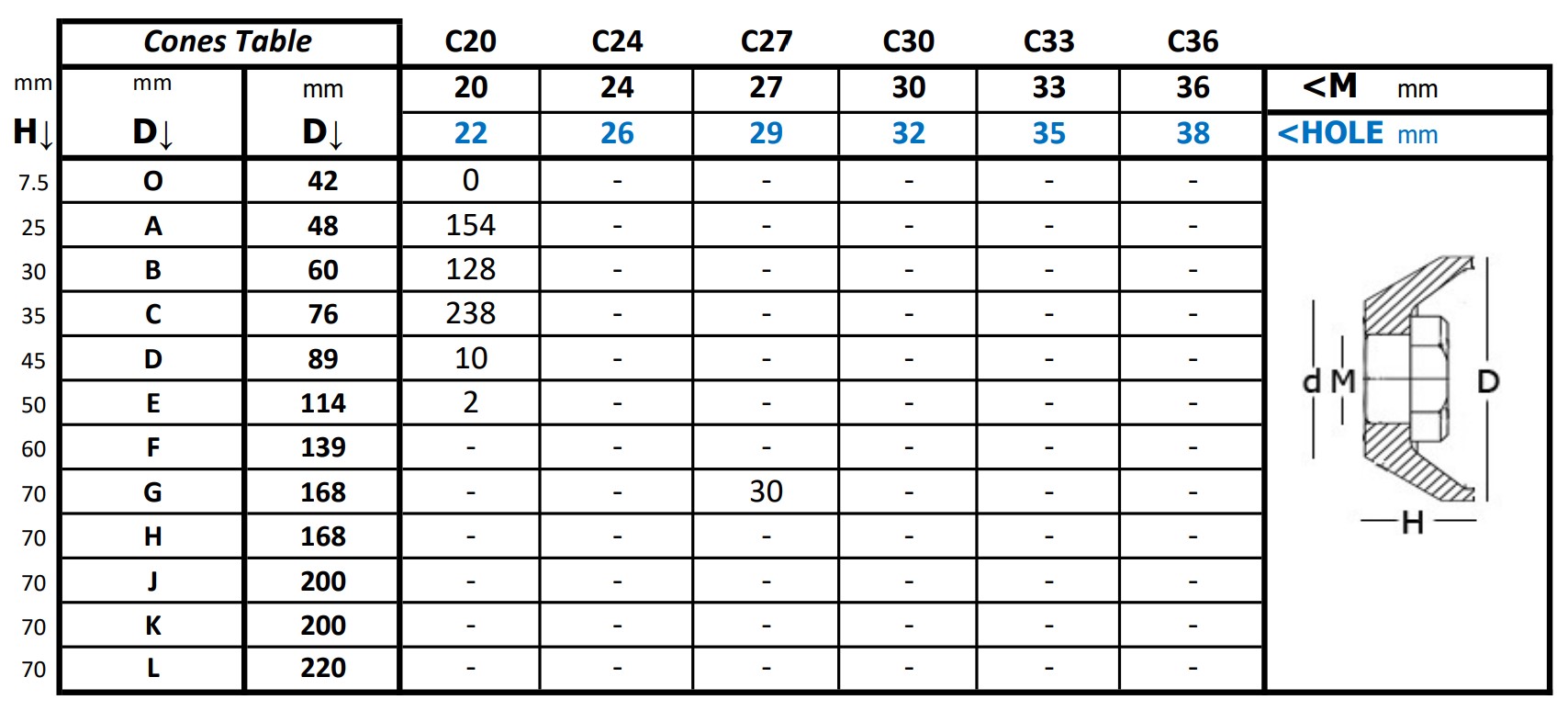

Cone Table
This table represents a list of Cones used in the project and assigns each letter to each cone dimension.

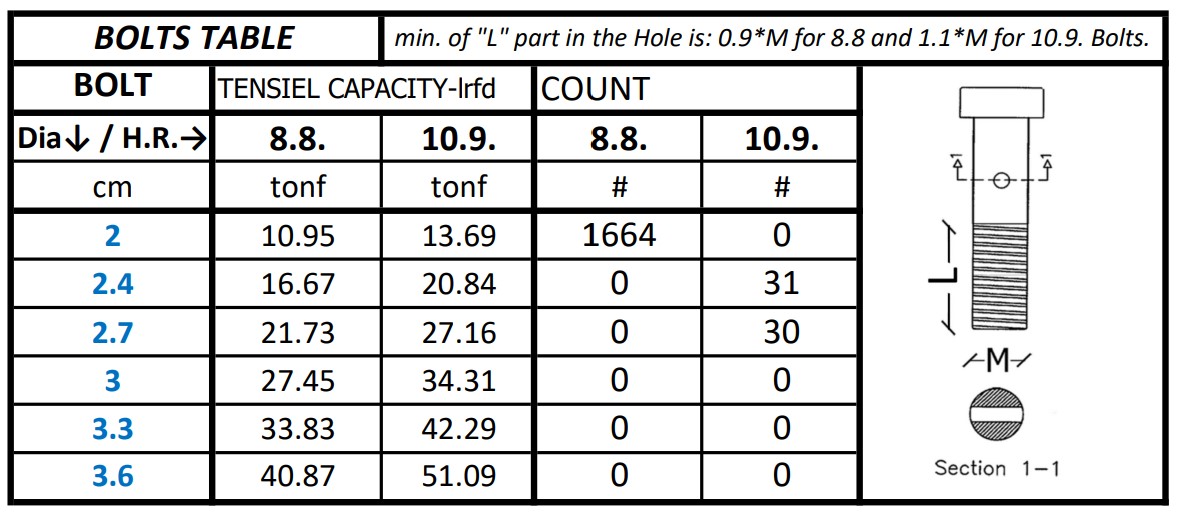

Bolt Table
This table represents a list of Bolts used in the project.

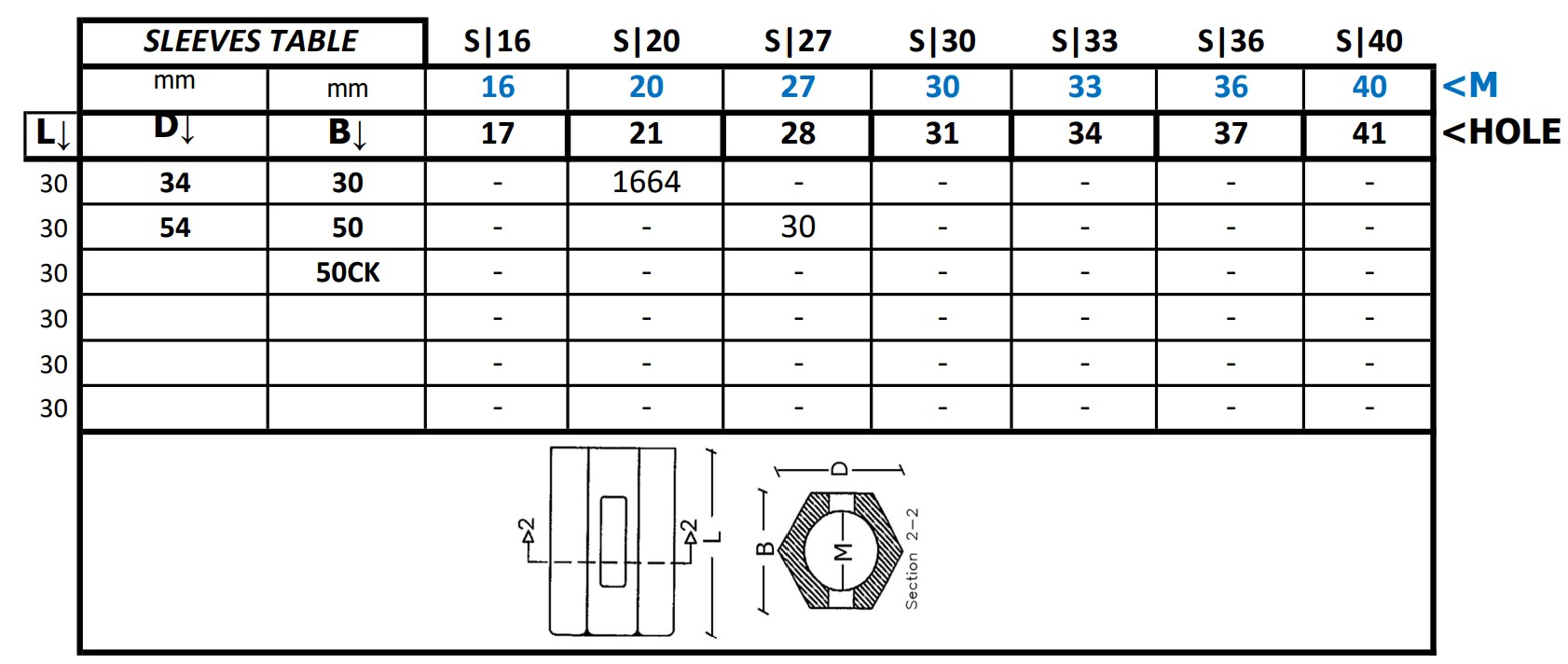

Sleeve Table
This table represents a list of Sleeves used in the project.

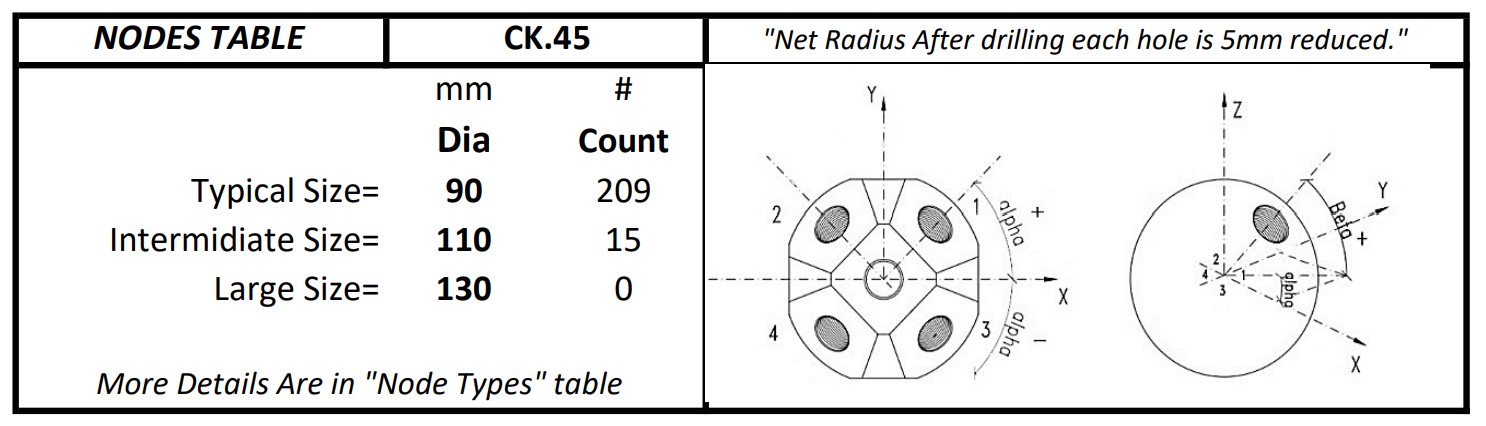

Sphere
This table represents a list of Spheres used in the project before drilling.

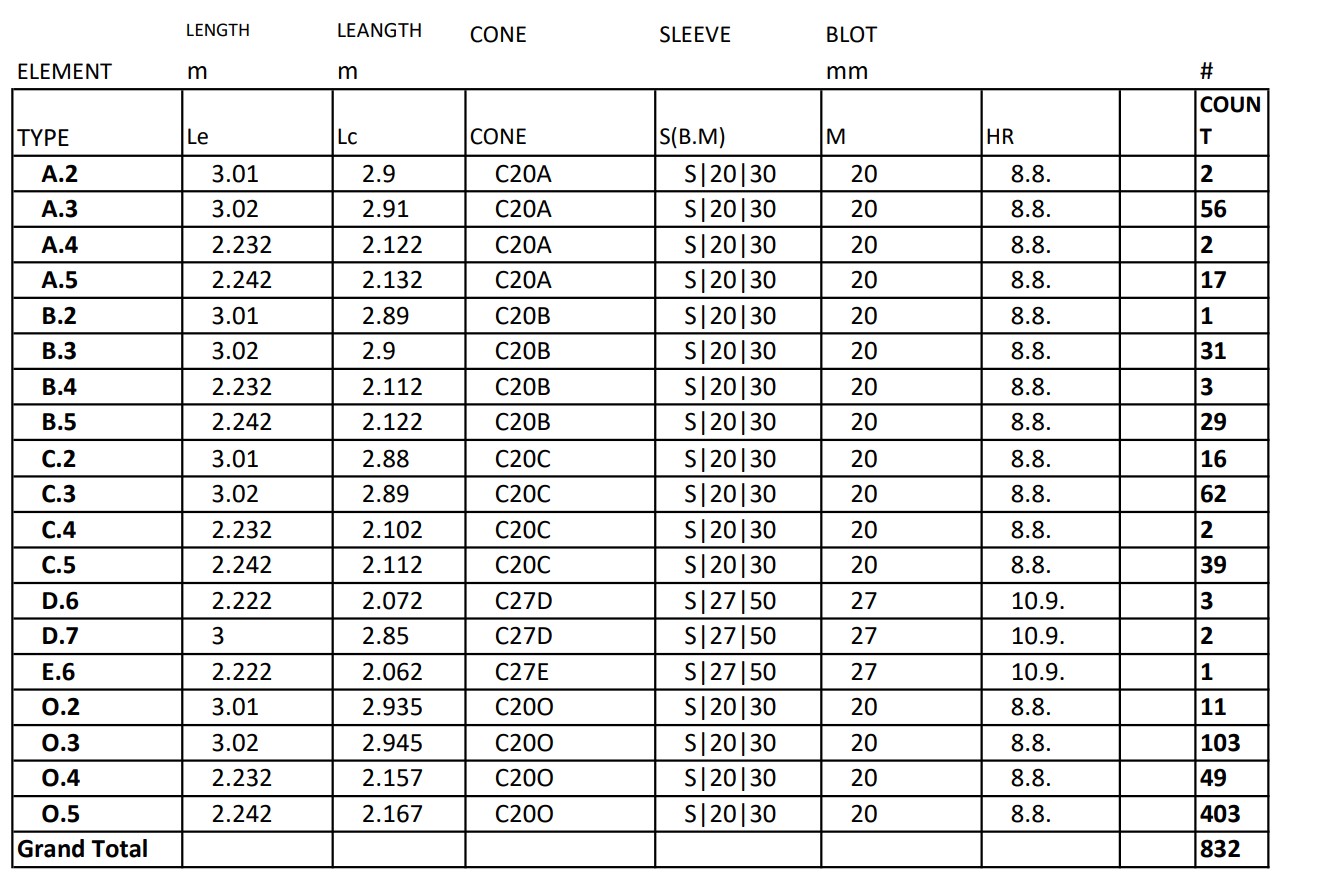

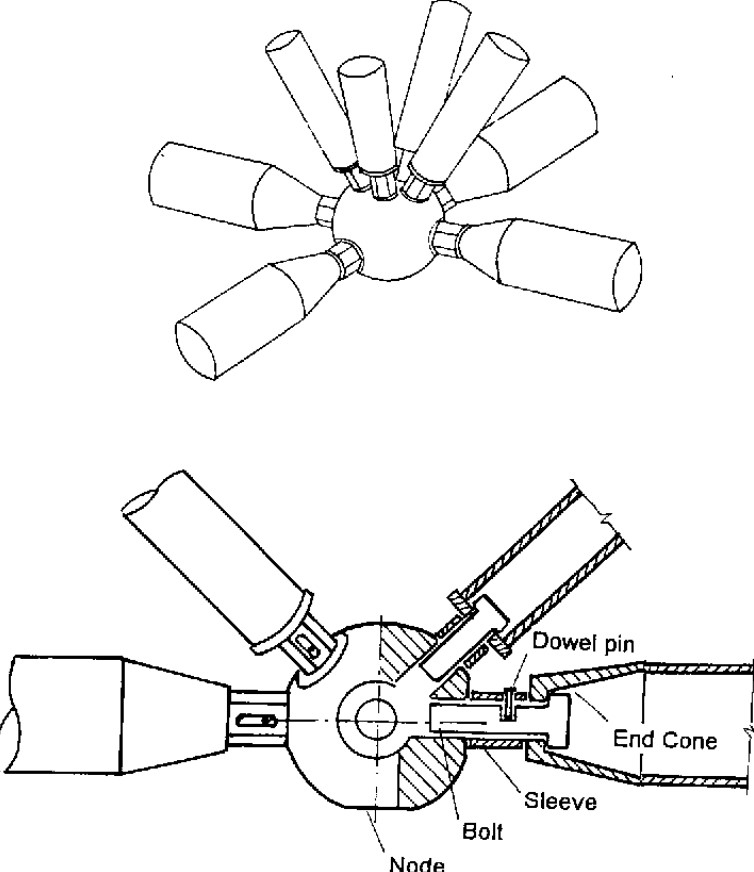

Members Table
This table categorizes elements that are used in the project into specific types. Each element contains a pipe, cones, sleeves, and bolts.

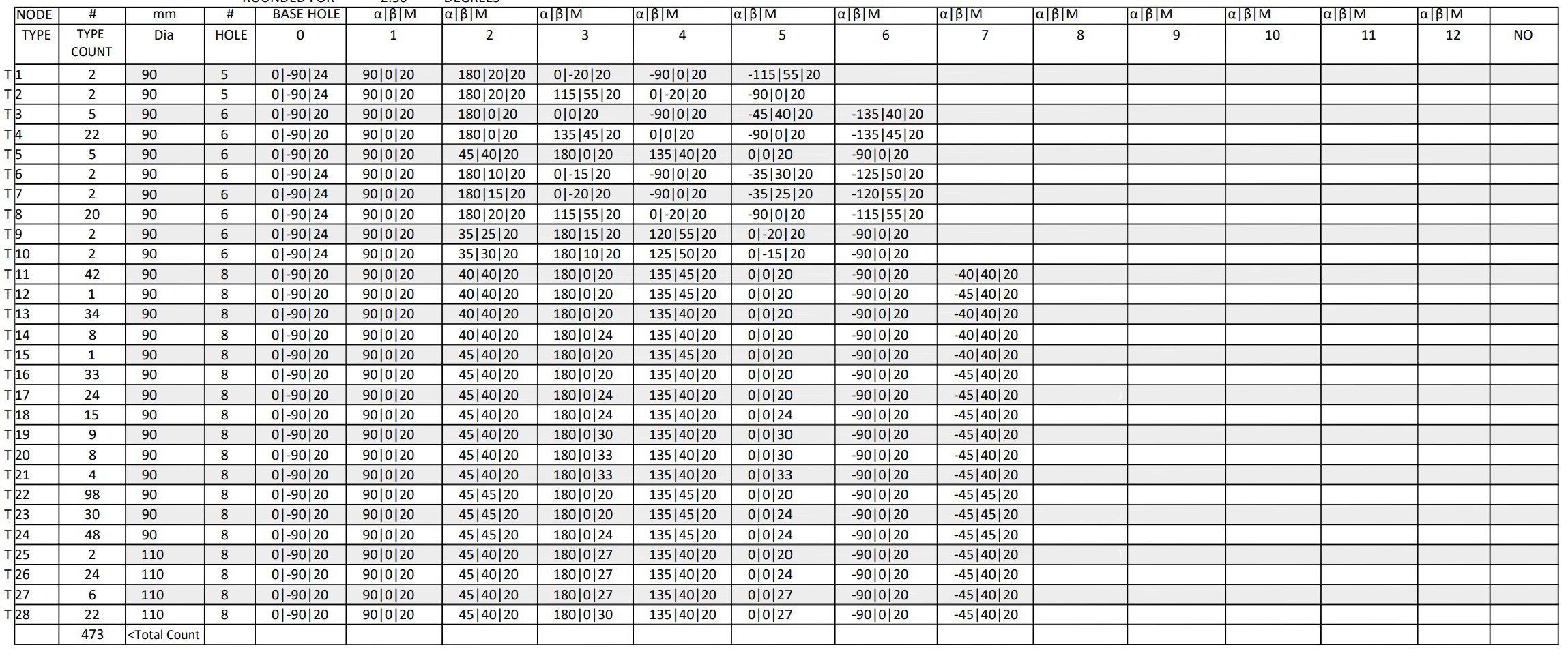

Nodes Table
This table categorizes nodes that are used in the project into specific types. Each node type is distinguished by sphere diameter and number of holes. Each hoe is addressed by a horizontal and vertical angel and corresponding bolt size.

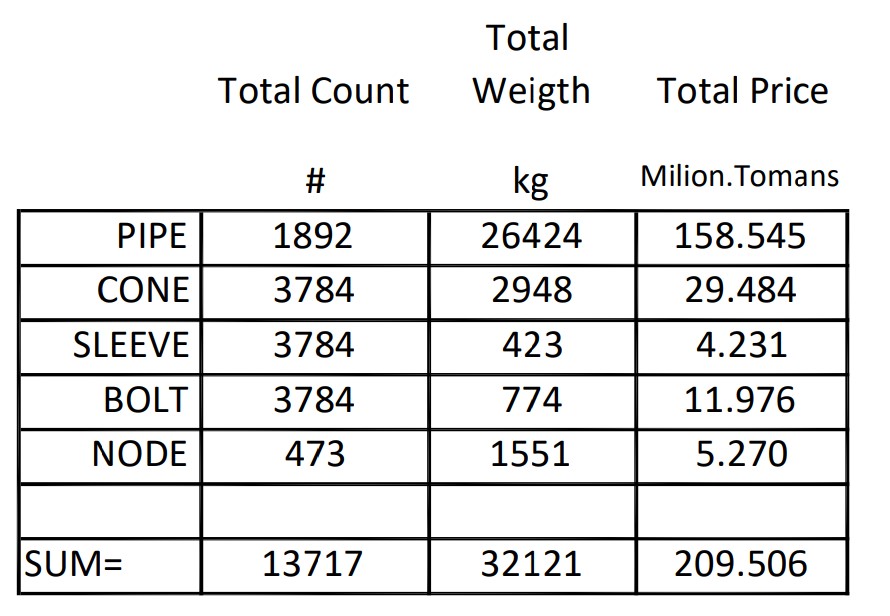

Project Estimate
This table displays a brief report on the quantity, weight and total price of the project and its component types.

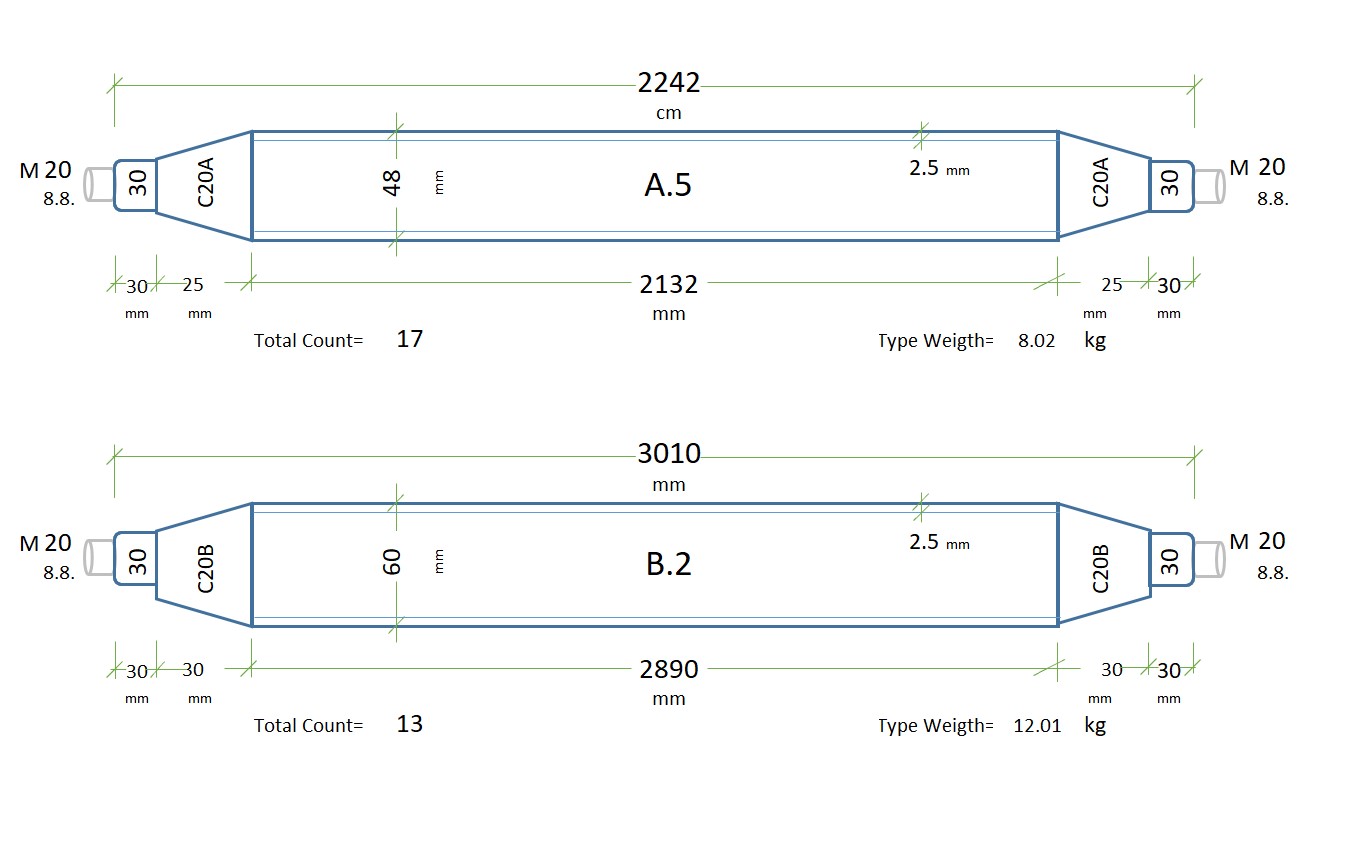

Elements Figure
The properties of each element type in the table are shown in the figure as well for better understanding.

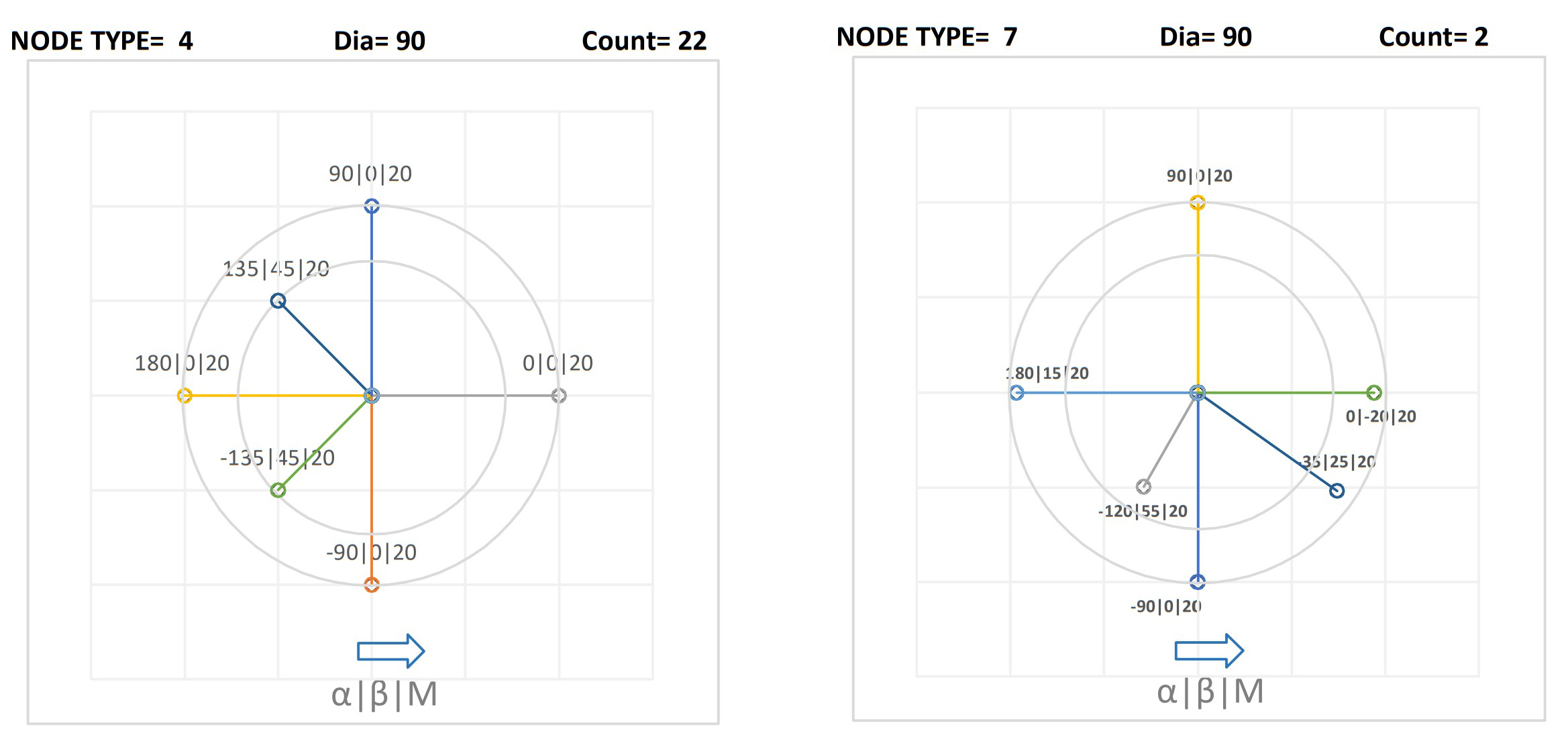

Node Drilling Plan
The properties of each node type in the table are shown in the figure as well for better understanding.

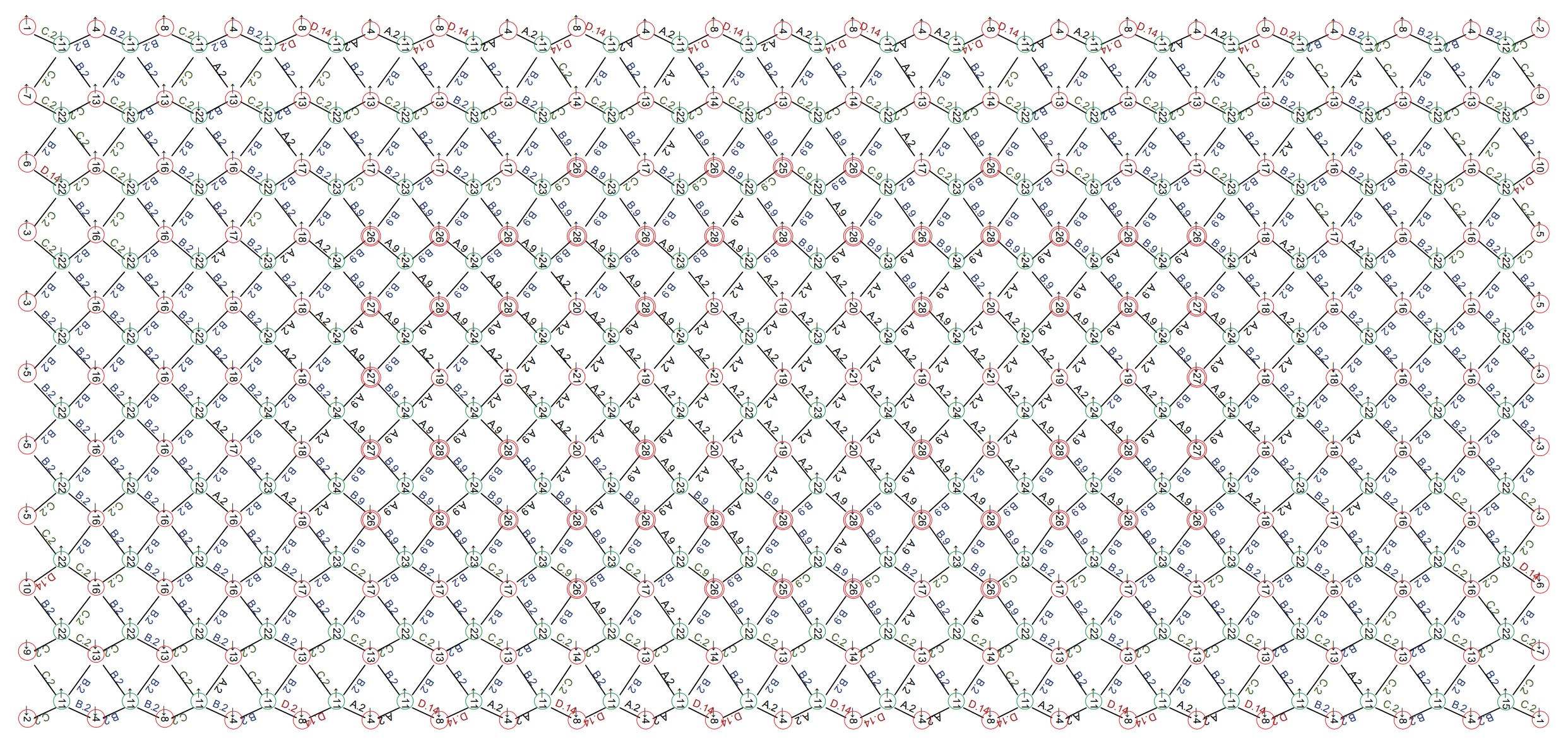

Errection Plan
The element and node types that are introduced in the related tables are shown in the specific location on the erection plans.

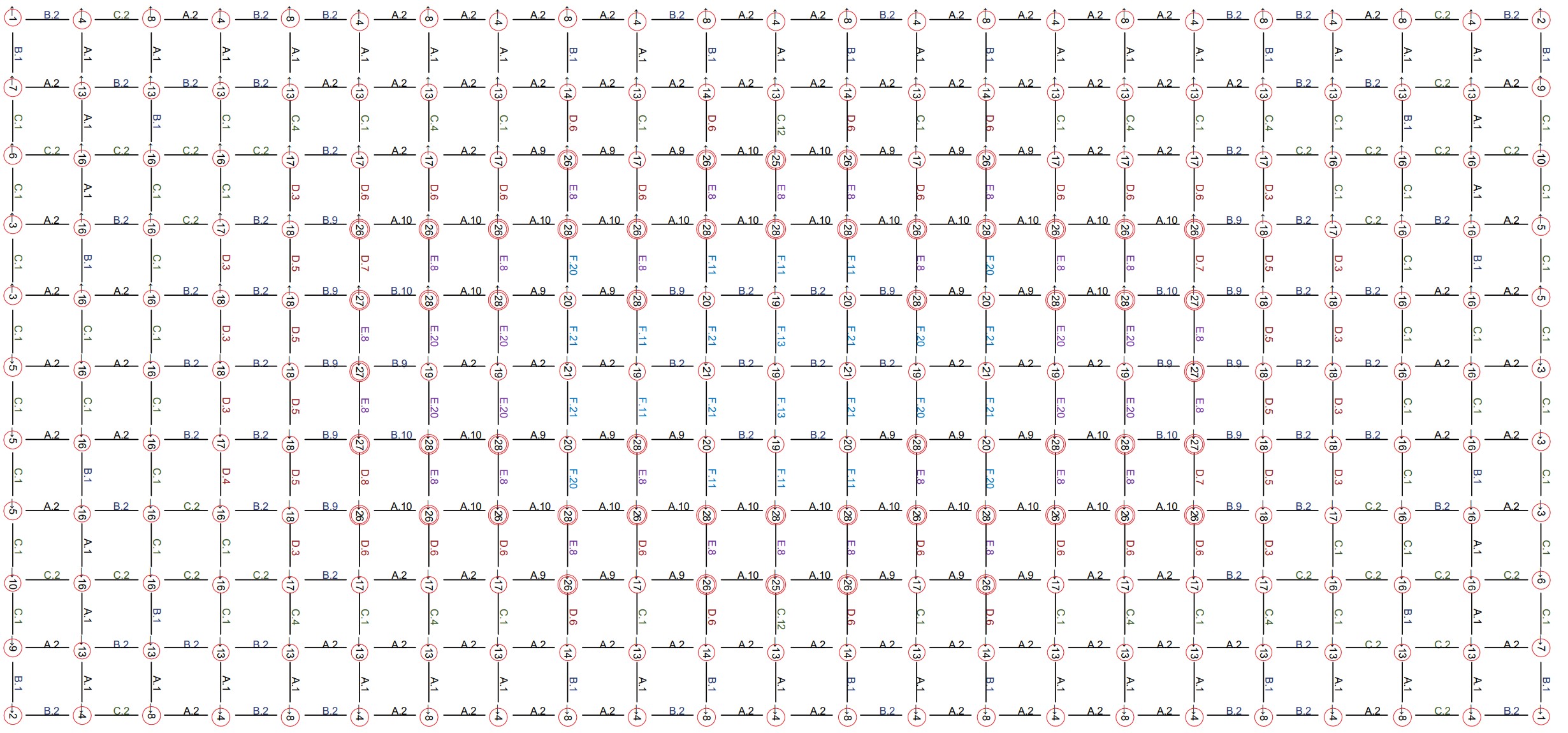

Errection Plan
The element and node types that are introduced in the related tables are shown in the specific location on the erection plans.
